Pinnacle 55


High: 36,000
Low: 21,000

EnerGuide 68.75%

Black glass, grey pebbles,
porcelain liner, full deluxe system

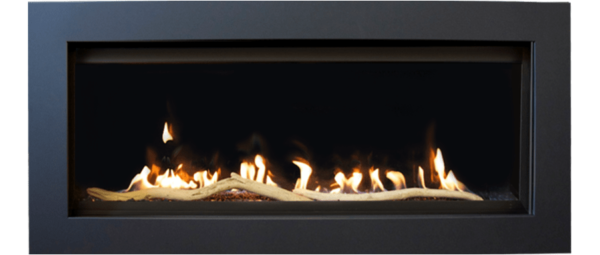

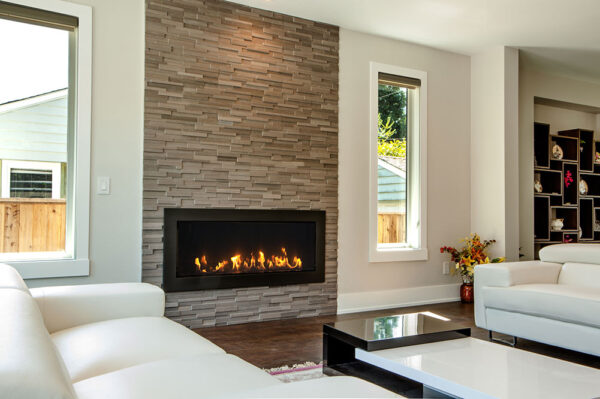

The Pinnacle 55 is the flagship of our fireplace line. It is a 55” linear fireplace that will be the centerpiece of your living room. Fully loaded with porcelain panels and deluxe system you cannot miss at such a reasonable price. Plus, it’s 36,000 BTU’s turns all the way down to 21,000 BTU’s on low. A very versatile heating capacity!

Viewing area: 18‐1/2″ H x 52-3/4″ W

Direct Vent

Zero Clearance

Additional information

Mandatory: Surround

One surround must be ordered and shipped with each fireplace

Clean Face Black Surround with Safety Screen (PINCFBS)
Basic Black Surround with Safety Screen (PINBBS)
Decorative Black Surround with Safety Screen (PINDBS)

Optional: Termination Kit

Termination Kit (TTK)
You will need a termination kit.
If your installer is supplying then you do not need to purchase here.


This unit requires 4" & 7" venting

Framing Dimensions

39" H x 58 1/2" W x 17 7/2" D

Actual Dimensions

29.86" H x 54.29" W x 17 1/2" D

Viewing Area

18 1/2" H x 52 3/4" W

Efficiency Guide

EnerGuide 68.75%

Deluxe System

Includes fan, electronic ignition, seven day thermostat programmable remote, modulating flame
